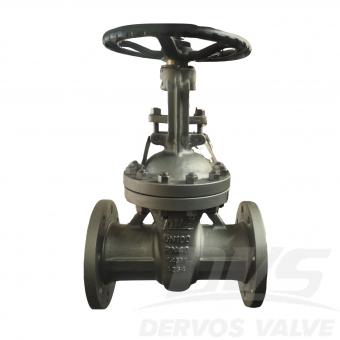

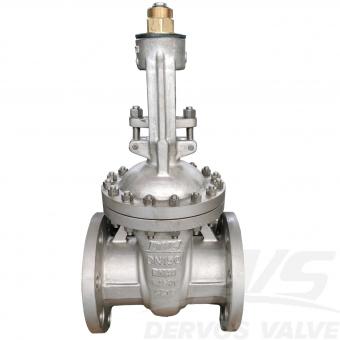

4" 150LB 게이트 밸브 API603 스테인레스 스틸 HW-OP OS&Y CF8M

4" 150LB 게이트 밸브는 API에 따라 제작됩니다. 603 표준. 밸브 본체는 ASTM A351 CF8M+STL로 만들어졌습니다. 그것은 볼트 커버, 탄성 쐐기 및 라이징 스템의 구조적 특성. 그것은 테스트 및 검사는 API 598을 준수하며, 작동 모드는 핸드휠 작동입니다.

  • 지불:

    30% when order confirmed, 70% before shipment
  • 제품 원산지:

    China
  • 색:

    Customization
  • 배송 포트:

    Shanghai, China
  • 리드 타임:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A351 CF8M+STL
  • Method of Operation:

    HW-OP
지금 문의
제품 상세 정보

제품 설명

유형

문 판막

크기

4"

압력

150LB

연결

RF

작업

HW-OP

몸 재료

ASTM A351 CF8M+STL

설계 표준

API 603

얼굴 차원을 마주하다

ASME B16.10

플랜지 차원

ASME B16.5

시험 및 검사 코드

API 598

온도

-29 ~ 425°C

해당되는 중간

물, 석유 및 가스

특징

1. 유체저항이 작고, 밀봉 표면은 매체에 의해 덜 긁히고 침식됩니다.

2. 간단한 구조, 짧은 구조 길이와 넓은 적용 범위;

3. 좋은 제조 공정, 고온 및 고압 저항 및 다양한 옵션 재료.

기술도면

4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M

치수 확인

4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M

압력 테스트

4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M

명판 및 포장

4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M4" 150LB Gate Valve API603 Stainless Steel HW-OP OS&Y CF8M
