10" 300LB 합금강 게이트 밸브 RF C5 API600 베벨 기어

10" 300LB 게이트 밸브는 API에 따라 제작됩니다. 600 표준. 밸브 본체는 ASTM A217 C5로 만들어졌습니다. 그것은 구조적 볼트 커버, 탄성 게이트, 라이징 스템, OS&Y, 풀 보어 및 바디 밸브 시트. 연결 모드는 RF(125~250AARH)입니다. 그리고 베벨기어가 있어서 작동 모드.

  • 지불:

    30% when order confirmed, 70% before shipment
  • 제품 원산지:

    China
  • 색:

    Customization
  • 배송 포트:

    Shanghai, China
  • 리드 타임:

    30~60 days Ex Works after order confirmation
  • Material:

    ASTM A217 C5
  • Method of Operation:

    Bevel Gear
지금 문의
제품 상세 정보

제품 설명

유형

문 판막

크기

10"

압력

300LB

연결

RF (125~250AARHï¼

작업

사각 기어

몸 재료

ASTM A217 C5

설계 표준

API 600

얼굴 면차원으로

ASME B16.10

플랜지 차원

ASME B16.5

시험 및 검사 코드

API 598

온도

-29 ~ 650°C

해당되는 중간

물, 석유 및 가스

특징

1. 조밀한 구조, 적당한 디자인, 매끄러운 채널 및 낮은 흐름 저항 계수;

2. 롱 석유의 다양한 시스템의 파이프라인에 널리 사용되는 서비스 수명, 화학, 수력, 화력 발전소.

기술도면

10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear

치수 확인

10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear

압력 테스트

10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear

회화

10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear

포장

10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear

검사보고서

10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear10" 300LB Alloy Steel Gate Valve RF C5 API600 Bevel Gear

메시지를 남길

에 관심이 있다면 우리의 제품과한 자세한 내용을 알고 싶다면,메시지를 남겨주십시오 여기,우리가 응답할 것입니다 당신은 빨리 우리가 할 수 있습니다.

관련 상품
다섯 개의 백성 중 하나
API600 합금강 10'' 300LB 게이트 밸브 BB RF OS&Y

10… 300LB 게이트 밸브는 API 600에 따라 제작되었습니다. 기준. 밸브 본체는 ASTM A217 C5 + STL로 만들어졌습니다. 그것은 구조적 라이징 스템과 볼트 커버의 특징. 플랜지로 연결된 게이트 밸브에는 핸드휠의 작동 모드.

다섯 개의 백성 중 하나
6" 150LB 합금 강철 게이트 밸브 RF WC6 API600 핸드 휠

6" 150LB 게이트 밸브는 API에 따라 제작됩니다. 600 표준. 밸브 본체는 ASTM A217 WC6으로 만들어졌습니다. 그것은 구조적 볼트 커버, 탄성 게이트, 라이징 스템, OS&Y, 풀 보어, 바디 밸브 시트. 연결 모드는 RF(125~250AARHï¼)이며 핸드 휠 작동 모드가 있습니다.

300LB 합금강 글로브 밸브
API623 3인치 300LB 합금강 글로브 밸브 A217 WC6 RF HW

3인치 300LB 합금강 글로브 밸브는 API623 표준에 따라 제작됩니다. 밸브 본체는 A217 WC6 재질로 제작되었으며, 관통형 구조와 317.5mm의 길이를 가지고 있습니다. 연결 방식은 RF이며, 핸드휠 작동 방식을 사용합니다.

다섯 개의 백성 중 하나

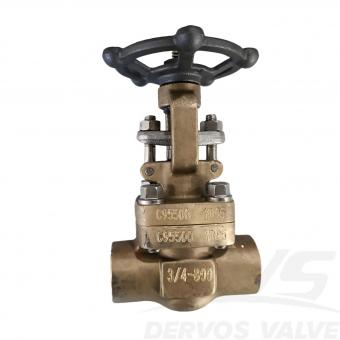

3/4" 800LB C95500 게이트 밸브 SW API 602

3/4인치 800LB C95500 게이트 밸브는 API602 표준에 따라 제작되었습니다. 밸브 본체는 C95500 재질이며, 연결 방식은 스위치 방식이고, 핸드휠이 장착되어 있습니다. 작동 모드. 제품 매개변수 유형 게이트 밸브 크기 3/4인치 압력 800파운드 연결 남서쪽 작업 핸드휠 본체 재질 C95500 디자인 표준 API 602 끝 차원 ASME/ANSI B1.20.1 재료는 적합함 ASME/ANSI 시험 및 검사 규정 API598 적용 가능한 매체 물, 석유 및 가스 특징 1. C95500 니켈 알루미늄 청동으로 제작되어 해수 및 해양 환경에서 뛰어난 내식성과 강도를 제공합니다. 2. API 602 규격을 준수하는 SW 단자가 있는 게이트 밸브는 800LB 압력 적용 분야에서 컴팩트한 설치와 안정적인 차단을 보장합니다. 기술 도면 치수 검사 압력 테스트 검사 보고서

BS 1868 스윙 타입 체크 밸브
8 인치 스윙 체크 밸브 1500 lb WCB 플랜지 BBS BS 1868

8 인치 비 복귀 체크 밸브는 볼트 보닛 및 스윙 타입 디스크와 함께 bs 1868 설계 코드를 준수합니다. 플랜지 체크 밸브는 탄소강 a216 wcb로 만들어집니다. 디자인 기능1.bb : 볼트 보닛2. 스윙 형 디스크3. 보어 디자인 감소4. 우수한 유량5. 마찰 손실 최소화선택을위한 6.standard 손질 물자7. 요청에 따라 외부 또는 내부 힌지 핀 사용 가능요청에 따라 8.cylinder 및 카운터 무게 9. 베어 스템 및 액추에이터는 요청시 제공 가능 빠른 세부 사항 유형 검사   판막 크기 8 인치 설계 압력 아니   1500 년 구성 볼트   보닛, 스윙 타입 연결 높인   페이스 플랜지 디자인 및 제조 bs   1868 끝으로 종료 저 같은   b16.10 연결 저 같은   b16.5 압력 및   온도 저 같은   b16.34 테스트 & amp;   검사 API   598 바디 재료 탄소   강철 해당 온도 -29 ℃ ~ + 400 ℃ 미디어 w.o.g. 치수 클래스 1500 nps 에 2 2 1/2 삼 4 6 8 10 12 dn mm 50 65 80 100 150 200 250 300 l-l1(rf-bw) 에 14-1 / 2 16-1 / 2 18-1 / 2 21-1 / 2 27-3 / 4 32-3 / 4 39 44-1 / 2 mm 368 419 470 546 705 832 991 1130 l2(rtj) 에 14-5 / 8 16-5 / 8 18-5 / 8 21-5 / 8 28 33-1 / 8 39-3 / 8 45-1 / 8 mm 371 422 473 549 700 841 1000 1146 h(열다) 에 12-1 / 4 12-1 / 4 13 14 15-3 / 4 20-7 / 8 22-1 / 16 25-5 / 8 mm 310 310 330 355 400 530 560 650 wt(킬로그램) rf 69 93 140 232 490 990 1490 1970 년 bw 49 74 111 185 375 803 1250 1625

나비 형 밸브
14" 150LB 동심 버터플라이 밸브 WCB 웨이퍼 API609 기어

14" 150LB 버터플라이 밸브는 API609 규격에 따라 제작되었습니다. 밸브 몸체는 WCB+EPOXY COATING으로 제작되었습니다. 센터라인의 구조적 특징을 가지고 있습니다. 연결방식은 웨이퍼이며, 기어작동방식을 가지고 있습니다.

글로브 밸브
3/4" 800LB 단조 강철 글로브 밸브 SW+FNPT A105N API602

3/4" 800LB 글로브 밸브는 API 602 표준에 따라 만들어집니다. 밸브 본체는 A105N+ STL로 만들어집니다. 플러그, 디스크 스위블 플러그, 바디 시트 및 OS&Y의 구조적 특성을 가지고 있습니다. 연결 모드는 SW+FNPT입니다. 그리고 핸드 휠 작동 모드가 있습니다.

단조 플로팅 볼 밸브
DN15 PN40 단조 플로팅 볼 밸브 바디 ASTM A105 HW

DN15 PN40 단조 플로팅 볼 밸브는 ISO 17292 표준에 따라 제작됩니다. 밸브 본체는 ASTM A105N으로 제작되었습니다. 플로팅 볼, 풀 보어, 내화성 및 정전기 방지, 폭발 방지 스템의 구조적 특성을 갖추고 있습니다. 연결 방식은 EN 1092-1 B1이며, 핸드 휠 작동 방식을 사용합니다.

볼 밸브
DN100 PN25 3방향 플로팅 볼 밸브 RF CF8M ISO17292

DN100 PN25 볼 밸브는 ISO 17292 표준에 따라 제작되었습니다. 밸브 본체는 A351-CF8M으로 만들어졌습니다. T자형, 플로팅 볼, 방화, 정전기 방지, 비행 방지 밸브 스템, 양방향의 구조적 특성을 가지고 있습니다. 연결 모드는 RF입니다. 그리고 다이얼 조작 모드를 위한 레버가 있습니다.

니들 밸브
1/2" 6000PSI 니들 밸브 FNPT 레버 SS316 ASME

1/2" 6000PSI 니들 밸브는 ASME B16.34 표준에 따라 제작되었습니다. 밸브 본체는 SS316으로 제작되었습니다. 직통 구조적 특성을 가지고 있습니다. 연결 모드는 FNPT이며 레버 작동 모드가 있습니다.

다섯 개의 백성 중 하나
150LB 고성능 오프셋 더블 웨이퍼 나비 벨브

3 인치 150LB 나비 벨브는 더블-오프셋 디스크 디자인 할 수 있는 디스크 이동 좌석 감 실행하는 토크와 좌석에 착용한다. 웨이퍼 유형 밸브에 의해 구동 변속기와 수동 핸들에 의해 또는 전기,공압 또는 유압 actuator.
